streisal Submersible Agitator – TRV
As a complete supplier of agitators, mixing systems and special designs, streisal offers the right solution for every requirement. Take advantage of our expertise in planning, configuration and selection of the right agitator technology. Our employees will be happy to work out individual concepts for you.
More Photos
Product Description

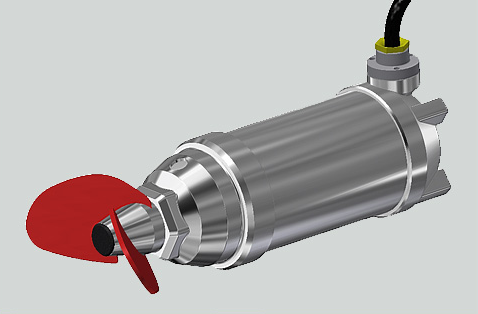

TRV submersible motor agitators with direct drive
Small agitator tanks and ponds
The fast-running submersible agitators of the TRV type are suitable above all for swirling up deposits and solids, for example in pumping stations, equalisation or retention tanks as well as for industrial mixing of all kinds of substances in relatively small agitating tanks.
Extreme operating conditions
The universally applicable submersible motor agitator has a high-alloyed stainless steel housing and opens up entirely new applications – even for adhesive, highly aggressive and abrasive media. Seal elastomers are available either as fluorinated rubber (Viton) or as perfluorelastomers (Kalrez, Prafluor).
Sturdy stainless steel housing
The robust small submersible motor agitator has a housing made of high-alloyed stainless steel which can be used even for difficult agitating and mixing tasks.
Maximum performance in the smallest space
With its compact design, these submersible agitators / mixers are also suitable for tight installation openings for subsequent installation.
Flexible adaptation to the material being mixed
When operated with a frequency inverter, variable speeds and propeller diameters allow for flexible adaptation to the medium.
Specifications
- Motor: 400+/-10% VAC
- Rated frequency: 50 Hz
- Index of protection IP 68
- Power range: 1.1 kW
- Mains frequency: 50 Hz
- Circulating rate: 300 m³/h

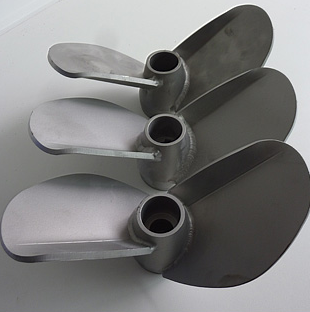

- Propeller diameter: 220 mm
- Coolant/medium temperature: max. 40 °C
- Mechanical seal: Pairing of SIC/SIC
- Submersion depth: max. 20 m
See the product description on streisal’s website.
