    Solid feed technology: Powerfeed

    Börger agricultural products offer farmers and biogas plant operators products which are customized to their requirements, from pumps to macerators, solids and liquid separators, liquid manure technology to our sophisticated solid feed technology. The mobile pumps complete the product range.

    More Photos

    • Capture d’écran 2017-12-15 13.41.06
    • Capture d’écran 2017-12-15 13.41.16
    • Capture d’écran 2017-12-15 13.41.27
    • Capture d’écran 2017-12-15 13.41.38
    • Capture d’écran 2017-12-15 13.41.47
    • Capture d’écran 2017-12-15 13.41.56
    • Capture d’écran 2017-12-15 13.42.06
    • Capture d’écran 2017-12-15 13.42.16
    • Capture d’écran 2017-12-15 13.42.26

    Product Description

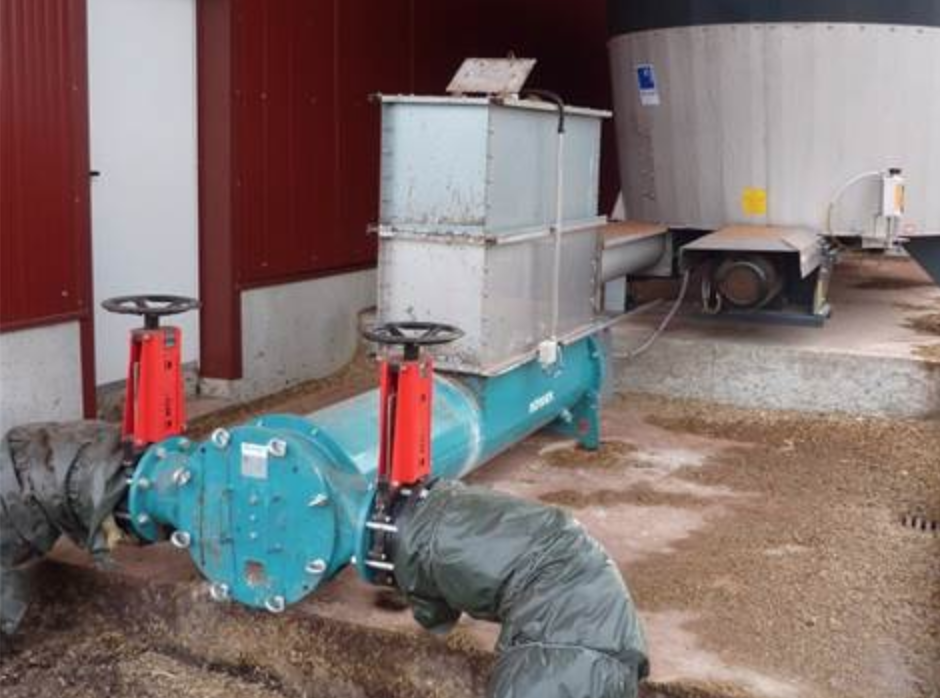

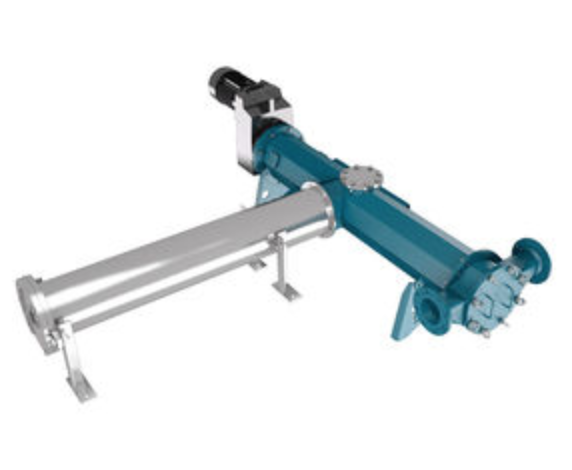

    The Boerger Powerfeed – safety and reliability

    The Powerfeed is used for feeding solids into biogas plants.

    The Powerfeed technology is installed at an appropriate position in the pressure pipe system. The Börger dosing technology conveys the biomass into the flow pipeline in the fully enclosed system.

    The Powerfeed is available in two sizes. The liquid feeding technology of the Powerfeed duo version is combined with a storage container. The biomass is fed at the side in the Powerfeed connect. The new Powerfeed twin with its two powerful augers has been developed for feeding of large quantities and widely varying biomass.

    The optimum solution – Boerger Powerfeed

    BÖERGER - Solid feed technology: Powerfeed

    The Powerfeed renewable raw material feeding technology guarantees safe and reliable feeding of solids into enclosed, throughflow pipeline systems.

    The Powerfeed is available in two sizes. The Powerfeed 300 handles volumes of around 4 – 5 t/h at very low speeds to minimize wear while the Powerfeed 400 can achieve up to 9 t/h. A higher feeding rate can be attained by increasing the speed.

    Benefits

    • Closed system, no odors or gas leaks
    • Less entrapped air
    • Less agitating in the tank
    • Less power consumption
    • A metering system for tanks of any size or number
    • Very few moving parts, simple effective conveying unit

    Read more about Powerfeed

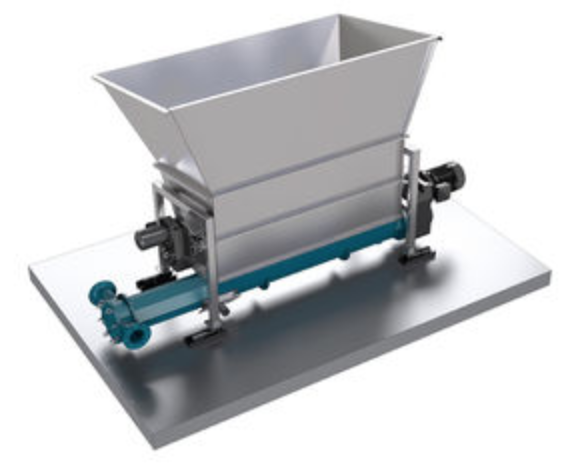

    The Boerger Powerfeed duo

    The Powerfeed duo is the complete, worry-free liquid feeding technology package thanks to a combination between efficient feeding technology, a stainless steel storage container and well-engineered control technology.

    Benefits

    The combination between efficient feeding technology and appropriate substrate supply assures effective solid infeed.

    • Enclosed system, so no odor emission or gas leakage
    • Less entrapped air
    • Less agitating required in the tank
    • Less power consumption
    • Dosing system for any number of containers of different heights
    • Few moving parts and compact, clearly arranged feed unit

    Read more about Powerfeed duo

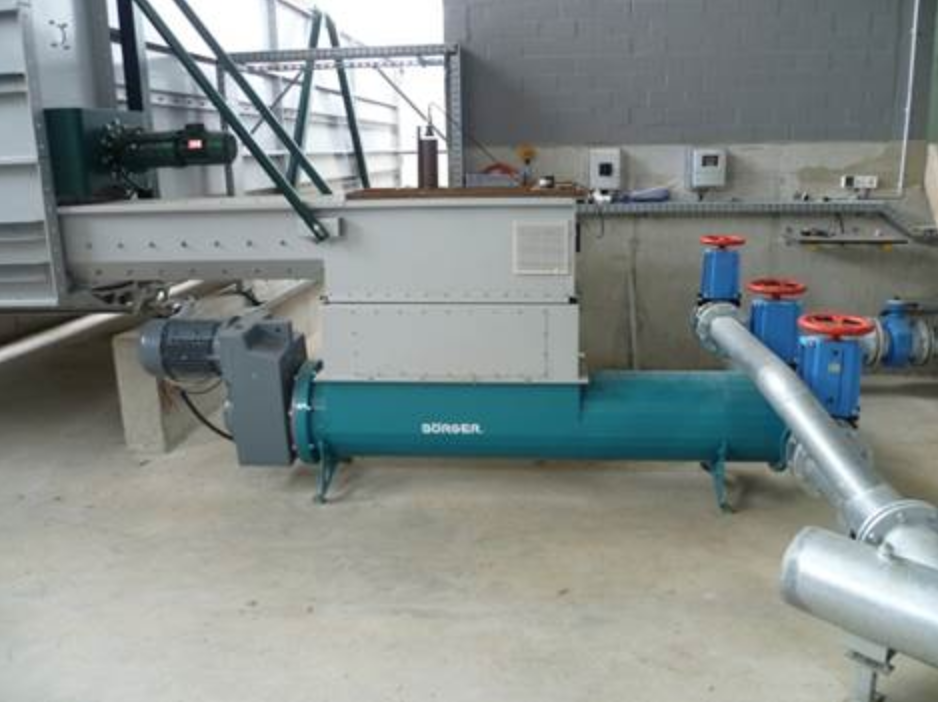

    Powerfeed connect

    The Powerfeed connect is connected to the side of to the discharge auger of a mixing dosing feeder or moving floor.  The enclosed system offers the highest degree of safety.

    The Powerfeed connect is available in two sizes with flow rates of 4-5 t/h or 9 t/h.

    Benefits

    • Connection to existing mixing dosing feeders
    • Highest level of safety
    • Enclosed system, so no odor emission or gas leakage
    • Less entrapped air
    • Less agitating required in the tank
    • Less power consumption
    • Dosing system for tanks of any number and of different heights
    • Few moving parts, clear, compact conveying unit

    Read more about Powerfeed connect

    Powerfeed twin

    With the optional macerating tools in the press channel, the Powerfeed offers two functions in one − reliable liquid feeding and highly effective defibration of the biomass for higher gas yield.

    Best technology, easy to operate and highest efficiency.

    Benefits

    • Connection to existing mixing dosing Feeders
    • Highest level of safety
    • Powerful
    • Higher energy availability due to integrated macerating unit
    • Enclosed system, so no odor emission or gas leakage
    • Less entrapped air
    • Less agitating required in the tank
    • Dosing system for tanks of any number and of different heights
    • Less power consumption
    • Few moving parts, clear, compact conveying unit

    Read more about Powerfeed twin



    For more information, please visit Böerger’s website.
