Product Description

BAUER CNG Compressor Systems: Full Line Of Reciprocating Piston Compressor Systems For High Pressure CNG Applications Up To 5000 PSIG Final Pressure

BAUER offers a full line of reciprocating piston compressor systems that are capable of compressing the conditioned biogas up to 5000 PSIG final pressure which is the pressure required for use in CNG vehicles. At the heart of every BAUER, CNG compressor system is the highly reliable BAUER reciprocating compressor which is designed and manufactured by BAUER.

BAUER has been producing CNG systems for over 35 years and is considered the golden standard in the CNG Industry. BAUER CNG systems are world-renowned for exceptional durability and reliability which translates into the lowest cost of ownership for the operator. Furthermore, BAUER COMPRESSORS’ negligible oil carry-over compared to other reciprocating compressors in the industry protects today’s highly sophisticated but sensitive CNG vehicle engines from costly breakdowns.



Range and Flexibility for Any Size Fleet

BAUER offers a full line of CNG compressor systems to fit any size fleet. The BAUER CNG compressor system is the perfect matchup to the GRU™ Biogas Recovery Compressor system because the BAUER CNG booster compressors can utilize the outlet pressure generated by GRU™ Biogas Recovery Compressor to boost the pressure of the cleaned and conditioned biogas up to 5000 PSIG which is required for CNG vehicle use.

  • Inlet pressure range: 5 – 230 PSIG (0.35 – 15.8 BAR)
  • Horsepower range: 5 – 350 HP (3.7 – 260 KW)
  • Biogas Flow Rate: 6.3 – 875 SCFM (37 – 1487 M3/HR)
  • Final Pressure: 5000 PSIG (345 BAR)



Standard Scope of Supply of BAUER CNG Compressor Systems

  • BAUER’s heavy-duty reciprocating booster compressor at the heart of the system
  • PLC control of all major system components (Control systems equipped with VF drive are located remote from skid as intented by Class 1, Div 2 requirements per NEC, NFPA 10
  • Heavy-duty TEFC electric motor
  • Stainless steel construction of piping and major P&ID components
  • Gas after-cooler
  • Automatic condensate drain system
  • BAUER CONNECT® remote telemetry IOT with Modbus TCP/IP or Profinet connection capability
  • Fully integrated system built on a heavy-duty steel skid designed for plug and play installation



Optional Features

  • Heavy-duty weatherproof enclosure
  • Sound attenuation
  • Passivation of piping
  • Ultrasonic testing of piping welds
  • Hydro testing of piping and relevant components
  • Special certifications and documentation
  • CE electrical code, CRN pressure vessel code

BAUER CNG Compressor Systems: Name of parts



Types of BAUER CNG Compressor Systems

BAUER Micro Series C120: CNG Systems for Small Fleets

Features:

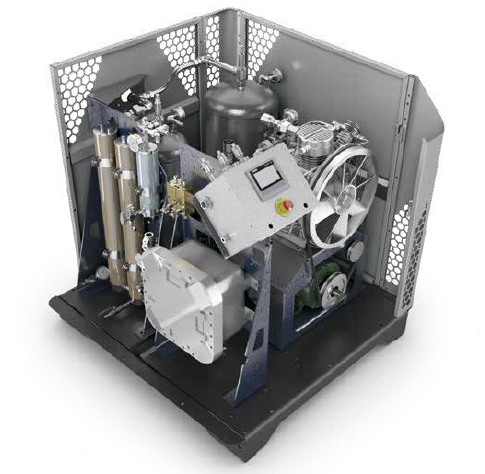

BAUER CNG Compressor Systems- BAUER Micro Series C120 example

  • 5-7.5 HP (3.7-5.5KW)
  • 6.3-9.0 SCFM (11-15 M3/HR)
  • 5000 PSIG (345 Bar) PSIG max discharge pressure











BAUER Compact Series C15/22: CNG Systems for Small to Medium Fleets

Features:

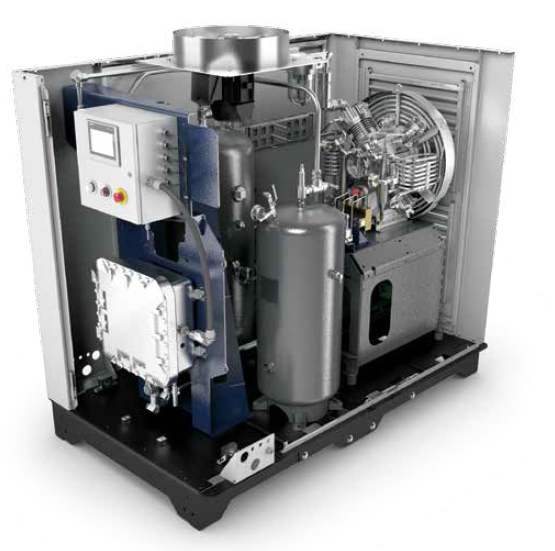

BAUER CNG Compressor Systems - BAUER Compact Series C15-22_example

  • 20-30 HP (13.3-21.7KW)
  • 22-40 SCFM (37-68 M3/HR)
  • 5000 PSIG (345 Bar) PSIG max discharge pressure











BAUER M-Series Simplex: CNG Systems for Medium to Large Fleets

Features:

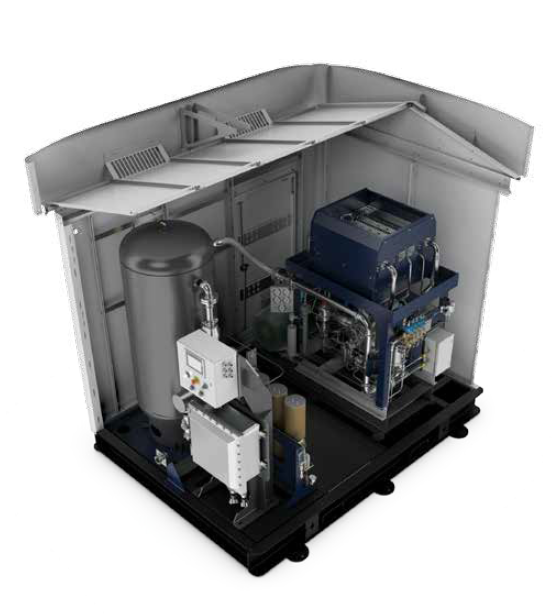

BAUER CNG Compressor Systems - BAUER M-Series Simplex

  • 50 HP (37 KW)
  • 75-125 SCFM (125-212 M3/HR)
  • 5000 PSIG (345 Bar) PSIG max discharge pressure











BAUER M-Series Duplex: CNG Systems for Medium to Large Fleets

Features:

BAUER CNG Compressor Systems - BAUER M-Series Duplex

  • 100 HP (75 KW)
  • 150-250 SCFM (254424 M3/HR)
  • 5000 PSIG (345 Bar) PSIG max discharge pressure









BAUER C26 X-Fill: CNG Systems for Large Fleets

Features:

BAUER CNG Compressor Systems- BAUER C26 X-Fill

  • 150-175 HP (40-132 KW)
  • 200-440 SCFM (340-748 M3/HR)
  • 5000 PSIG (345 Bar) PSIG max discharge pressure









BAUER C52 X-Fill: CNG Systems for Large Fleets

Features:

BAUER CNG Compressor Systems - BAUER C52 X-Fill

    • 250-350 HP (185-260 KW)
    • 340-875 SCFM (578-1487 M3/HR)
    • 5000 PSIG (345 Bar) PSIG max discharge pressure
